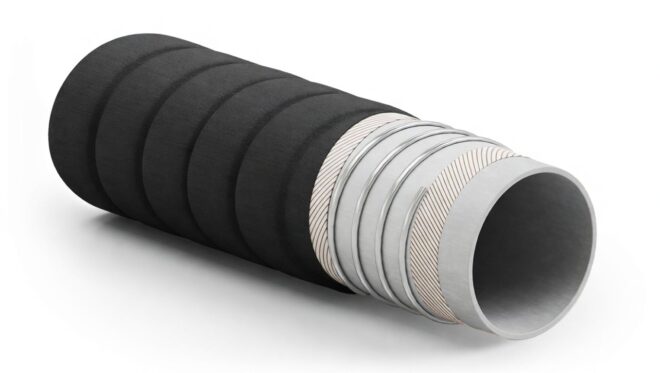

TURAD^® FORM HPC (HB UL 94:2023 – UL RECOGNIZED HOSE)

Description

EPM (EPDM category rubber) corrugated version of TURAD® HPC with high flexibility, ideal for complex installations, offers maximum adaptability in compact spaces.
Best suited for water and propylene glycol (PG25) in direct-to-chip cooling loops.
Certified to UL 94:2023.

Working pressures up to: 10 bar

Temp range: -40℃ to 120℃

Key Features

• Highly flexible
• Temperature range: –40 °C to +120 °C (Evolution variant up to +170 °C continuous, peaks to +180 °C)
• Flame-resistant covers meeting UL 94:2023 V-0 classification
• High resistance to abrasion, ozone, UV and ageing
• Preserves coolant purity with no leaching or contamination
• Excellent mechanical stability under vibration and repeated flexing
• Bespoke assemblies with any combination of end fittings

Applications

Suction and delivery hose suitable for heat exchange solutions in data center cooling applications under the toughest conditions. The EPM tube does not contain heavy-metals as per RoHS specific requirements (2002/95/CE). Resistance and Compatibility with Glycol-Based Fluids. Best suited for water and propylene glycol (PG25) in direct-to-chip cooling loops. EPM (EPDM rubber category) is a heat-resistant polymer offering excellent compatibility with PG25 and other water-glycol coolant solutions. To preserve fluid purity and composition, the compound is peroxide-cured. Fungicides and bactericides added to the conveyed fluid prevent microbial growth, ensuring long-term safety and reliability.

Construction

Liner: Smooth white EPM (EPDM category rubber) compound, peroxide-cured, heat-resistant.

Reinforcements: Synthetic plies, galvanized wire helices.

Cover: Heavily corrugated (wide) black synthetic polymer cover, enhancing flexibility, flame-resistant with textile finish. Abrasion, ageing, ozone and UV resistant. Cover compound meets UL 94:2023 (V-0) requirements.

Connections

Triclamp, BSP, Flanged, any other required end connections.
