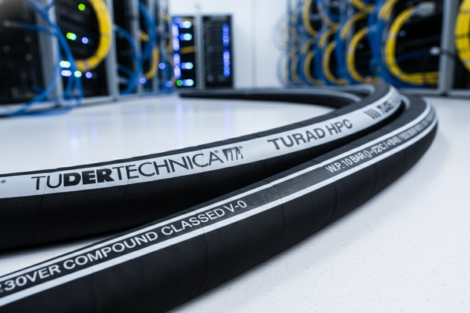

TURAD® HPC (HB UL 94:2023 – UL RECOGNIZED HOSE)
Description
EPM (EPDM) heat resistant hose with excellent compatibility with PG25 and other water-glycol coolant solutions.
Best suited for water and propylene glycol (PG25) in direct-to-chip cooling loops.
Certified to UL 94:2023.
Working pressures up to: 10 bar
Temp range: -40℃ to 120℃
Key Features
- Highly flexible
- Temperature range: –40 °C to +120 °C (Evolution variant up to +170 °C continuous, peaks to +180 °C)
- Flame-resistant covers meeting UL 94:2023 V-0 classification
- High resistance to abrasion, ozone, UV and ageing
- Preserves coolant purity with no leaching or contamination
- Excellent mechanical stability under vibration and repeated flexing
- Bespoke assemblies with any combination of end fittings
Applications
Resistance and Compatibility with Glycol-Based Fluids. Best suited for water and propylene glycol (PG25) in direct-to-chip cooling loops.
EPM (EPDM rubber category) is a heat-resistant polymer offering excellent compatibility with PG25 and other water-glycol coolant solutions. To preserve fluid purity and composition, the compound is peroxide-cured. Fungicides and bactericides added to the conveyed fluid prevent microbial growth, ensuring long-term safety and reliability.

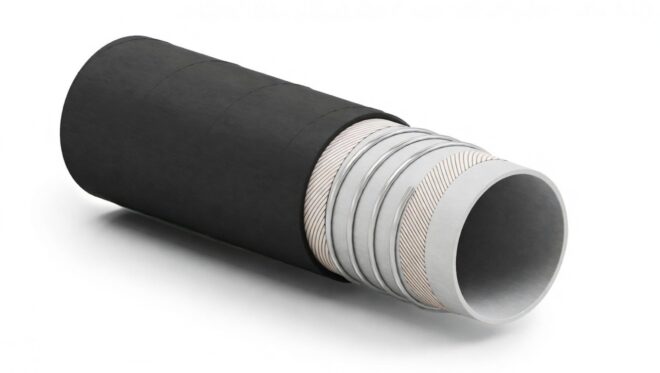

Construction
Liner: Smooth white EPM (EPDM category rubber) compound, peroxide-cured, heat-resistant.
Cover: Black smooth technopolymer cover with textile finish, flame-resistant and compliant with UL 94:2023 V-0 classification
Connections
Triclamp, BSP, Flanged, any other required end connections.
