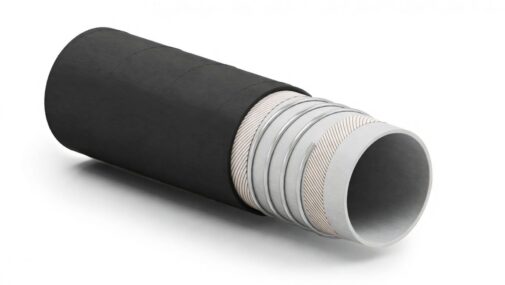

TURAD® HPC EVOLUTION
Description
Suction and delivery hose designed for heat exchange solutions in data center cooling.
Optimal compatibility with PG25 and other deionized water/glycol mixtures, preventing fluid contamination.
Extended temperature range: -40°C to +170°C (-40°F/+338°F), with peaks up to 180°C (+356°F).
Working pressures up to: 10 bar
Temp range: -40℃ to 170℃
Key Features
- High flexibility
- Extended temperature range: –40 °C to +170 °C (peaks to +180 °C)
- Flame-resistant covers meeting UL 94:2023 V-0 classification
- High resistance to abrasion, ozone, UV and ageing
- Preserves coolant purity with no leaching or contamination
- Excellent mechanical stability under vibration and repeated flexing
- Bespoke assemblies with any combination of end fittings
Applications
Resistance and Compatibility with Glycol-Based Fluids. Optimal compatibility with PG25 and other deionized water/glycol mixtures, preventing fluid contamination.
EPM (EPDM rubber category) is a heat-resistant polymer offering excellent compatibility with PG25 and other water-glycol coolant solutions. To preserve fluid purity and composition, the compound is peroxide-cured. Fungicides and bactericides added to the conveyed fluid prevent microbial growth, ensuring long-term safety and reliability.
Construction
Liner: Smooth white EPM (EPDM category rubber) compound, peroxide-cured, heat-resistant.
Reinforcements: Reinforced with synthetic fabrics and galvanized steel wire spirals.
Cover: Black synthetic polymer cover, resistant to abrasion, aging, ozone, and UV. High flexibility.
Also available in FORM version.
Connections
Triclamp, BSP, Flanged, any other required end connections.
