TUSIL® RAD HPC (V-1 UL 94:2023 – UL RECOGNIZED HOSE)
Enquire now to talk to one of our specialists.
Standards
- UL 94:2023 (V-0)
- UL 94:2003 (HB)
Description
Suction and delivery hose suitable for heat exchange fluids. Excellent compatibility with PG25 and other water-glycol coolant solutions.
Offers excellent compatibility with PG25 and other deionized water/glycol mixtures.
Working pressures up to: 15 bar
Temp range: -60℃ to 200℃
Key Features
- High flexibility
- Excellent temperature resistance: –60 °C to +200 °C
- Flame-resistant covers meeting UL 94:2023 V-0 classification
- High resistance to heat, ozone, and ageing
- Preserves coolant purity with no leaching or contamination
- Excellent mechanical stability under vibration and repeated flexing
- Bespoke assemblies with any combination of end fittings
Applications
Suction and delivery hose suitable for heat exchange solutions in data center cooling applications. The silicone tube does not contain heavy-metals as per RoHS specific requirements (2002/95/CE). Silicone offers excellent compatibility with PG25 and other percentage of water and glycol-based coolant solutions.

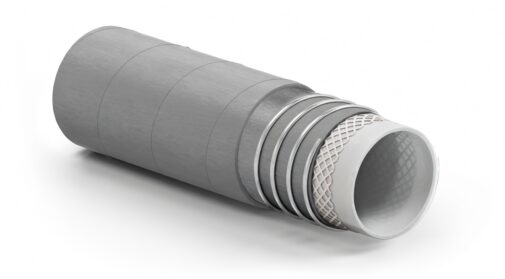

Construction
Liner: Smooth translucent silicone, heat resistant.
Reinforcements: High temperature resistant yarns, stainless steel wire helix.
Cover: Grey, cloth finish silicone. Ageing, ozone and heat resistant. Flame retardant, self-extinguishing, Cover compound meets UL 94:2003 (V-0) requiremnts.
Connections
Triclamp, BSP, Flanged, any other required end connections.
