TUFLUOR® PTFE HPC (HB UL 94:2023 – UL RECOGNIZED HOSE)
Enquire now to talk to one of our specialists.
Standards
- UL 94:2023 (V-0)
- UL 94:2003 (HB)
Description
Suction and delivery PTFE lined hose for heat exchange solutions in the most demanding data center cooling applications.
Offers optimal compatibility with PG25 and other deionized water/glycol mixtures.
Working pressures up to: 10 bar
Temp range: -40℃ to 150℃
Key Features
- High flexibility
- Low coefficient of friction to ensure efficient fluid circulation
- Excellent temperature resistance: –40 °C to +150 °C
- Excellent resistance to mechanical stress
- Excellent resistance to oxidation
- Flame-resistant covers meeting UL 94:2023 V-0 classification
- High resistance to abrasion, ozone, UV and ageing
- Preserves coolant purity with no leaching or contamination
- Excellent mechanical stability under vibration and repeated flexing
- Bespoke assemblies with any combination of end fittings
Applications
Suction and delivery hose suitable for heat exchange solutions in data center cooling applications under the toughest conditions. The PTFE tube does not contain heavy-metals as per RoHS specific requirements (2002/95/CE). PTFE offers the best compatibility with PG25 and other deionized water glycol coolant mixes to avoid fluid contamination.

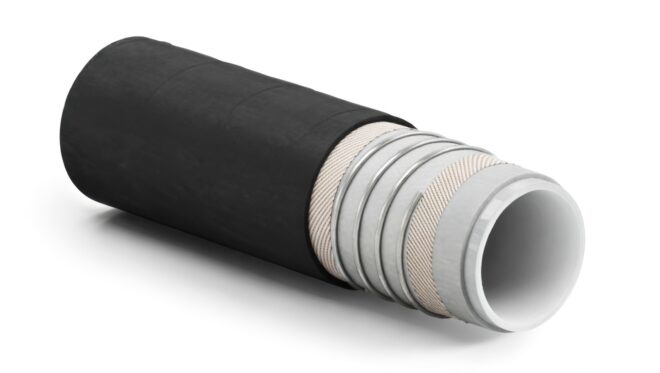

Construction
Liner: Smooth co-extruded Clear/white pigmented PTFE (Teflon®)
Reinforcements: Synthetic plies, stainless steel wire helix
Cover: Smooth, black technopolymer, flame retardant, cloth finish. Abrasion, ageing, ozone and UV resistant. Cover compound meets UL 94:2023 (V-0) requirements.

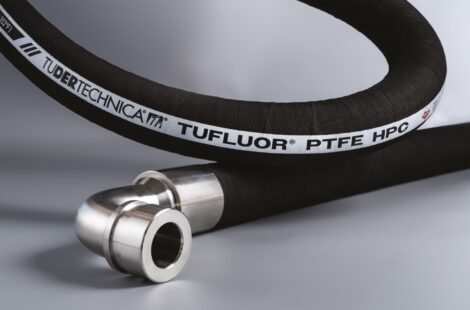

Connections
Triclamp, BSP, Flanged, any other required end connections.
