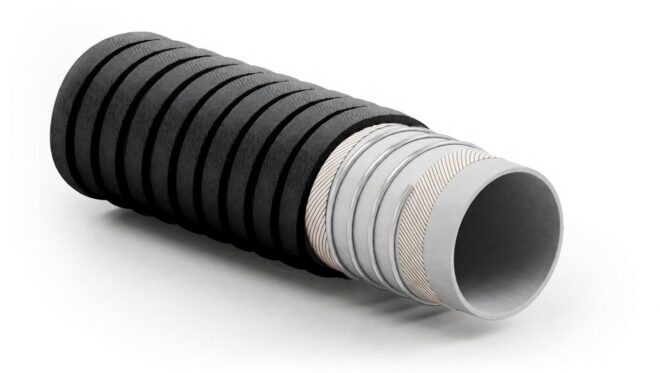

TURAD® FLEX HPC (HB UL 94:2023 – UL RECOGNIZED HOSE)
Description
EPM (EPDM category rubber) corrugated version with extreme flexibility, ideal for complex installations, offers maximum adaptability in compact spaces.
Best suited for water and propylene glycol (PG25) in direct-to-chip cooling loops.
Certified to UL 94:2023.
Temp range: -40℃ to 120℃
Key Features
- Extremely flexible
- Temperature range: –40 °C to +120 °C (Evolution variant up to +170 °C continuous, peaks to +180 °C)
- Flame-resistant covers meeting UL 94:2023 V-0 classification
- High resistance to abrasion, ozone, UV and ageing
- Preserves coolant purity with no leaching or contamination
- Excellent mechanical stability under vibration and repeated flexing
- Bespoke assemblies with any combination of end fittings
Applications
Resistance and Compatibility with Glycol-Based Fluids. Best suited for water and propylene glycol (PG25) in direct-to-chip cooling loops. EPM (EPDM rubber category) is a heat-resistant polymer offering excellent compatibility with PG25 and other water-glycol coolant solutions. To preserve fluid purity and composition, the compound is peroxide-cured. Fungicides and bactericides added to the conveyed fluid prevent microbial growth, ensuring long-term safety and reliability.
Construction
Liner: Smooth white EPM (EPDM category rubber) compound, peroxide-cured, heat-resistant.
Cover: Black corrugated flame-resistant cover, UL 94:2023 V-0 classified
Connections
Triclamp, BSP, Flanged, any other required end connections.
