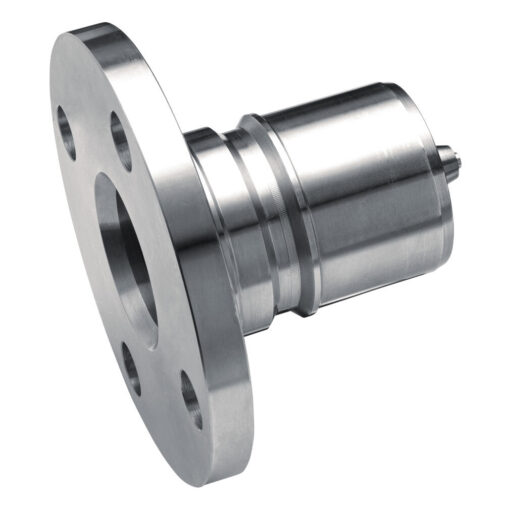

SelfVent™ Flanged PN16 Probe Adaptor + Relief Valve
Enquire now to talk to one of our specialists.
Description
DN40 Probe Adaptor PN16 Flange (1.5" Flanged DIN PN16 Class 150 RF Probe). For each Vent Point and Low point the following is required:
Working pressures up to: 69 bar
Temp range: -25℃ to 200℃
Key Features
SelfVent™ Aviation Hydrant Couplings (Probe Adaptor & Female Coupler Set)
- High flow rates of up to 947 litres per minute (at 3 bar pressure)
- Special bleed valve allows for easy connection and disconnection by operators whilst under pressure.
- Integral swivel reduces hose torsional forces during the coupling of units
- Viton ‘A’ internal seals and ‘O’ rings as standard suitable for aviation fuels.
- Operating temperatures from -25°c to +200°c
- Manufactured in the UK to ISO 228:2000, BS10, ANSI 150, ASME B16.5 and ISO 9001:2008
Applications
The series T9750 - 1.5” (40mm nominal bore) DN40 Quick Connect coupling is recommended for all types of fuel product transfer, where operator handling requires connection and disconnection under pressure. This unique coupling is fitted with a special bleed valve system which reduces the pressure required for operators when reconnecting the system as well as reducing product spillage and environmental contamination to a minimum.
Construction
All components manufactured from 316L stainless steel materials (according to AD2000-Merkblatt W0/TRD 100)
Connections
Available with BSP female thread forms and ASA 150 or PN16 flange adaptors.
Materials
Available in 316L Stainless Steel, with Viton Seals fitted as standard. Other seals, threads and flange types are available upon request
