Butterfly Valves

Description

Our stainless steel butterfly valves are of a slim design, top quality strength and a finished surface ensuring that they are the preference of many industries with hygienic requirements. Typical uses would include isolation of equipment, fill/drain systems, bypass systems and other similar applications.

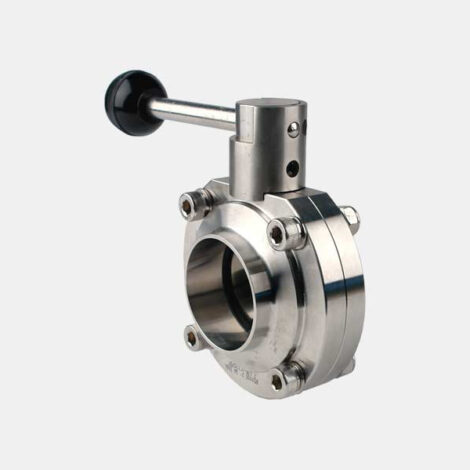

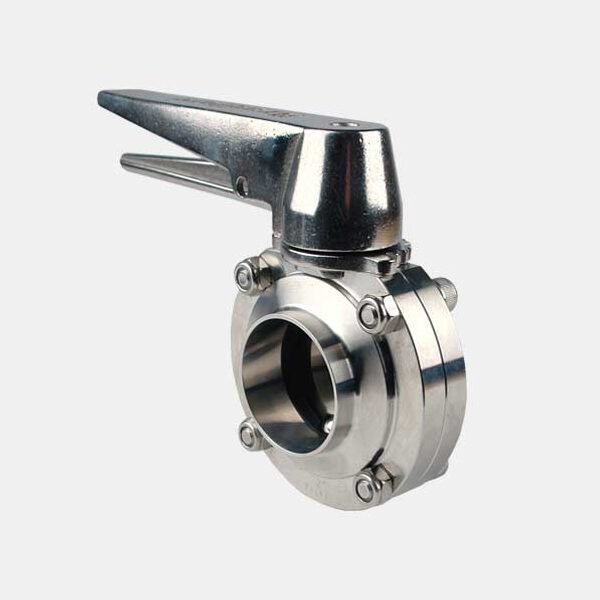

Butterfly valves have a variety of handle options for manual actuation and can also be remotely actuated by an electric or pneumatic means.

Vales are available terminating in any of our hygienic fitting types such as RJT, Triclamp, SMS, IDF, DIN 11851 as well as hose tail ends and other end connection types.

• Working Temperature and Pressure
  Working temperature for valves = -50°c to +210°c (Dependent on seal, based on water)
  Working pressure for valves = 0.9 bar to 10 bar (Based on water)

• Seals
  EPDM (White) as standard = -40°c to +120°c

Key Features

• The smooth, hygienic connection between the hose liner and the fitting ensures no bug traps
• No damage is done to the liner from swaging
• Every coupling has a material traceability number etched into it
• Every swaged ferrule is indented with batch production number, date of manufacture and any other unique references required for traceability

Applications

• Suitable for all applications within the brewing, distilling, beverage, food stuffs and pharmaceutical industries

Connections

• Butterfly Valve x Male or Female Connection x Hose Tail Connection
• Butterfly ValveAdaptors
• Butterfly ValveSeals
• Butterfly Valve Reducer couplings/Step-up & step-down couplings
• Standard elbow couplings
• Extended elbow couplings
• Flanged couplings
