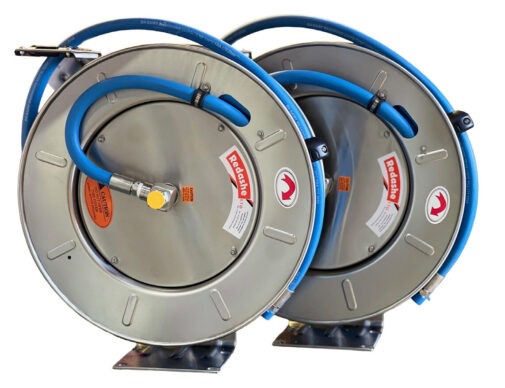

8501-CSS08-450L | Hygienic Hose Reel 304SS Food Grade & 15m 1/2" Hose
Enquire now to talk to one of our specialists.
Description
The SS808 series spring rewind hose reels are constructed in 304 grade stainless steel and other non corroding materials. These reels are designed for harsh, corrosive environments or where hygiene is of primary importance. Ideally suited for wash down applications in food processing areas.
Supplied with reel + hose as standard.
Hose lengths available are 15m or 20m, suplied as 1/2” hose.
Other sizes are available upon request.
Disclaimer
The information contained in this document is to the best of our knowledge, true and accurate, from sources believed to be reliable, we reserve the right to alter specifications without notice. Since conditions under which the products may be used are beyond our control, our recommendations are made without warranty or guarantee and should only be used as a guide. It is however the responsibility of the user to investigate and understand other pertinent sources of information, to comply with all laws and procedures applicable to the safe handling and use of this product, and to determine the suitability of the product for the intended application or use. All technical data is subject to change according to technical updates.
Working pressures up to: 20 bar
Key Features
- Heavy duty stainless steel construction
- Double supported solid 1” stainless steel axle
- Fully automatic hose rewind for neat and tidy storage
- Slotted and drilled mounting holes for easy installation
- Latching of hose at any length
- Non-snag roller guides reduce hose wear
- Externally mounted full flow stainless steel swivel assembly
- Supplied with 15m hose as standard. Bare reel option available also.
Applications
These reels are designed for harsh, corrosive environments or where hygiene is of primary importance. Ideally suited for wash down applications in food processing areas, marine and offshore.
Construction
Reel: 304-grade stainless steel and other non-corroding materials
Hose: EPDM
Connections
The connection points on the hose reel are 1/2" BSP
Flextech offer 316L stainless steel, permanently swaged Shawlok® couplings which includes Triclamp, DIN 11851, RJT, SMS, IDF, BSP and BSPT fully hygienic end connections for our hose assemblies.
